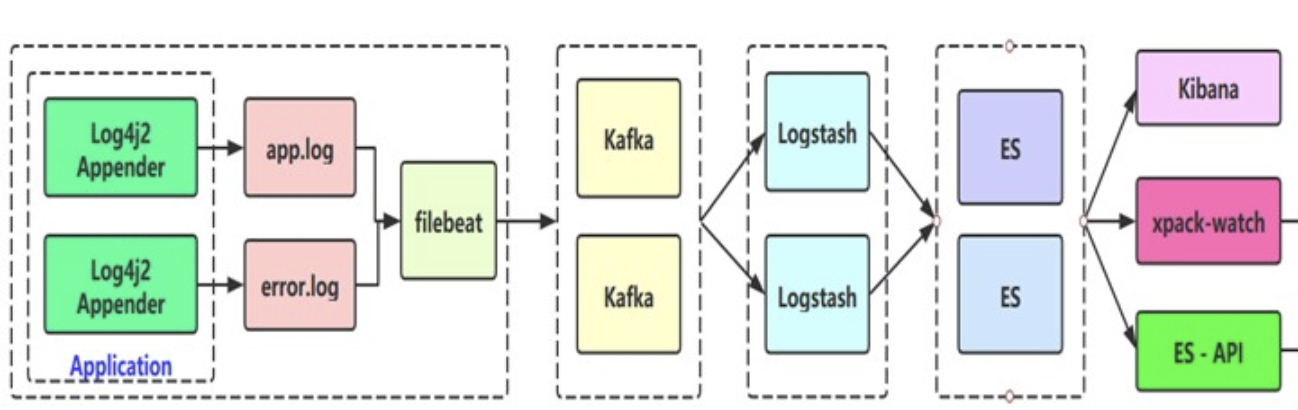

整体流程大概如下：

服务器准备

在这先列出各服务器节点，方便同学们在下文中对照节点查看相应内容

节点名称	节点作用	节点备注
192.168.11.31	SpringBoot部署
192.168.11.35	ElasticSearch节点	Kibana部署节点
192.168.11.36	ElasticSearch节点
192.168.11.37	ElasticSearch节点
192.168.11.111	zookeeper节点	kafka注册、配置中心
192.168.11.112	zookeeper节点	kafka注册、配置中心
192.168.11.113	zookeeper节点	kafka注册、配置中心
192.168.11.51	kafka节点	此节点为kafka broker

SpringBoot项目准备

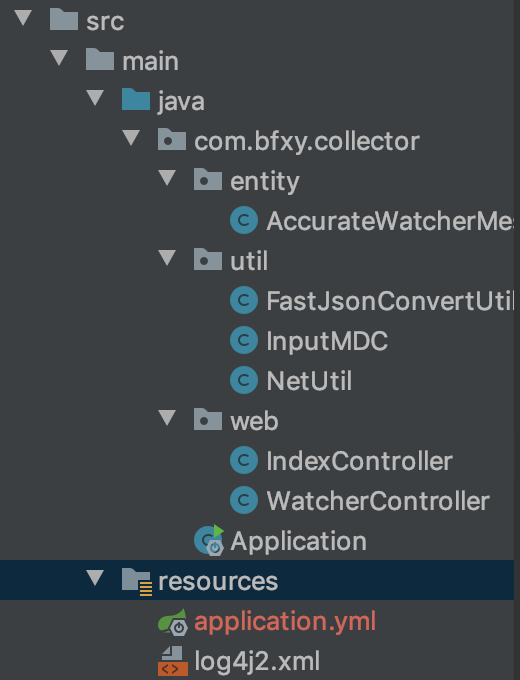

引入log4j2替换SpringBoot默认log，demo项目结构如下：

• pom

<dependencies>
   	<dependency>
       	<groupId>org.springframework.boot</groupId>
       	<artifactId>spring-boot-starter-web</artifactId>
       	<!-- 	排除spring-boot-starter-logging -->
       	<exclusions>
           	<exclusion>
               	<groupId>org.springframework.boot</groupId>
               	<artifactId>spring-boot-starter-logging</artifactId>
           	</exclusion>
       	</exclusions>
   	</dependency>
	<!-- log4j2 -->
	<dependency>
	    <groupId>org.springframework.boot</groupId>
	    <artifactId>spring-boot-starter-log4j2</artifactId>
	</dependency>
  	<dependency>
   		<groupId>com.lmax</groupId>
   		<artifactId>disruptor</artifactId>
   		<version>3.3.4</version>
  	</dependency>
</dependencies>

log4j2.xml

<?xml version="1.0" encoding="UTF-8"?>
<Configuration status="INFO" schema="Log4J-V2.0.xsd" monitorInterval="600" >
    <Properties>
        <Property name="LOG_HOME">logs</Property>
        <property name="FILE_NAME">collector</property>
        <property name="patternLayout">[%d{yyyy-MM-dd'T'HH:mm:ss.SSSZZ}] [%level{length=5}] [%thread-%tid] [%logger] [%X{hostName}] [%X{ip}] [%X{applicationName}] [%F,%L,%C,%M] [%m] ## '%ex'%n</property>
    </Properties>
    <Appenders>
        <Console name="CONSOLE" target="SYSTEM_OUT">
            <PatternLayout pattern="${patternLayout}"/>
        </Console>
        <RollingRandomAccessFile name="appAppender" fileName="${LOG_HOME}/app-${FILE_NAME}.log" filePattern="${LOG_HOME}/app-${FILE_NAME}-%d{yyyy-MM-dd}-%i.log" >
          <PatternLayout pattern="${patternLayout}" />
          <Policies>
              <TimeBasedTriggeringPolicy interval="1"/>
              <SizeBasedTriggeringPolicy size="500MB"/>
          </Policies>
          <DefaultRolloverStrategy max="20"/>
        </RollingRandomAccessFile>
        <RollingRandomAccessFile name="errorAppender" fileName="${LOG_HOME}/error-${FILE_NAME}.log" filePattern="${LOG_HOME}/error-${FILE_NAME}-%d{yyyy-MM-dd}-%i.log" >
          <PatternLayout pattern="${patternLayout}" />
          <Filters>
              <ThresholdFilter level="warn" onMatch="ACCEPT" onMismatch="DENY"/>
          </Filters>
          <Policies>
              <TimeBasedTriggeringPolicy interval="1"/>
              <SizeBasedTriggeringPolicy size="500MB"/>
          </Policies>
          <DefaultRolloverStrategy max="20"/>
        </RollingRandomAccessFile>
    </Appenders>
    <Loggers>
        <!-- 业务相关 异步logger -->
        <AsyncLogger name="com.bfxy.*" level="info" includeLocation="true">
          <AppenderRef ref="appAppender"/>
        </AsyncLogger>
        <AsyncLogger name="com.bfxy.*" level="info" includeLocation="true">
          <AppenderRef ref="errorAppender"/>
        </AsyncLogger>
        <Root level="info">
            <Appender-Ref ref="CONSOLE"/>
            <Appender-Ref ref="appAppender"/>
            <AppenderRef ref="errorAppender"/>
        </Root>
    </Loggers>
</Configuration>

• IndexController

测试Controller，用以打印日志进行调试

@Slf4j
@RestController
public class IndexController {

	@RequestMapping(value = "/index")
	public String index() {
		InputMDC.putMDC();

		log.info("我是一条info日志");

		log.warn("我是一条warn日志");

		log.error("我是一条error日志");

		return "idx";
	}


	@RequestMapping(value = "/err")
	public String err() {
		InputMDC.putMDC();
		try {
			int a = 1/0;
		} catch (Exception e) {
			log.error("算术异常", e);
		}
		return "err";
	}

}

• InputMDC

用以获取log中的[%X{hostName}]、[%X{ip}]、[%X{applicationName}]三个字段值

@Component
public class InputMDC implements EnvironmentAware {

	private static Environment environment;

	@Override
	public void setEnvironment(Environment environment) {
		InputMDC.environment = environment;
	}

	public static void putMDC() {
		MDC.put("hostName", NetUtil.getLocalHostName());
		MDC.put("ip", NetUtil.getLocalIp());
		MDC.put("applicationName", environment.getProperty("spring.application.name"));
	}

}

• NetUtil

public class NetUtil {

	public static String normalizeAddress(String address){
		String[] blocks = address.split("[:]");
		if(blocks.length > 2){
			throw new IllegalArgumentException(address + " is invalid");
		}
		String host = blocks[0];
		int port = 80;
		if(blocks.length > 1){
			port = Integer.valueOf(blocks[1]);
		} else {
			address += ":"+port; //use default 80
		}
		String serverAddr = String.format("%s:%d", host, port);
		return serverAddr;
	}

	public static String getLocalAddress(String address){
		String[] blocks = address.split("[:]");
		if(blocks.length != 2){
			throw new IllegalArgumentException(address + " is invalid address");
		}
		String host = blocks[0];
		int port = Integer.valueOf(blocks[1]);

		if("0.0.0.0".equals(host)){
			return String.format("%s:%d",NetUtil.getLocalIp(), port);
		}
		return address;
	}

	private static int matchedIndex(String ip, String[] prefix){
		for(int i=0; i<prefix.length; i++){
			String p = prefix[i];
			if("*".equals(p)){ //*, assumed to be IP
				if(ip.startsWith("127.") ||
				   ip.startsWith("10.") ||
				   ip.startsWith("172.") ||
				   ip.startsWith("192.")){
					continue;
				}
				return i;
			} else {
				if(ip.startsWith(p)){
					return i;
				}
			}
		}

		return -1;
	}

	public static String getLocalIp(String ipPreference) {
		if(ipPreference == null){
			ipPreference = "*>10>172>192>127";
		}
		String[] prefix = ipPreference.split("[> ]+");
		try {
			Pattern pattern = Pattern.compile("[0-9]+\\.[0-9]+\\.[0-9]+\\.[0-9]+");
			Enumeration<NetworkInterface> interfaces = NetworkInterface.getNetworkInterfaces();
			String matchedIp = null;
			int matchedIdx = -1;
			while (interfaces.hasMoreElements()) {
				NetworkInterface ni = interfaces.nextElement();
				Enumeration<InetAddress> en = ni.getInetAddresses();
				while (en.hasMoreElements()) {
					InetAddress addr = en.nextElement();
					String ip = addr.getHostAddress();
					Matcher matcher = pattern.matcher(ip);
					if (matcher.matches()) {
						int idx = matchedIndex(ip, prefix);
						if(idx == -1) continue;
						if(matchedIdx == -1){
							matchedIdx = idx;
							matchedIp = ip;
						} else {
							if(matchedIdx>idx){
								matchedIdx = idx;
								matchedIp = ip;
							}
						}
					}
				}
			}
			if(matchedIp != null) return matchedIp;
			return "127.0.0.1";
		} catch (Exception e) {
			return "127.0.0.1";
		}
	}

	public static String getLocalIp() {
		return getLocalIp("*>10>172>192>127");
	}

	public static String remoteAddress(SocketChannel channel){
		SocketAddress addr = channel.socket().getRemoteSocketAddress();
		String res = String.format("%s", addr);
		return res;
	}

	public static String localAddress(SocketChannel channel){
		SocketAddress addr = channel.socket().getLocalSocketAddress();
		String res = String.format("%s", addr);
		return addr==null? res: res.substring(1);
	}

	public static String getPid(){
		RuntimeMXBean runtime = ManagementFactory.getRuntimeMXBean();
        String name = runtime.getName();
        int index = name.indexOf("@");
        if (index != -1) {
            return name.substring(0, index);
        }
		return null;
	}

	public static String getLocalHostName() {
        try {
            return (InetAddress.getLocalHost()).getHostName();
        } catch (UnknownHostException uhe) {
            String host = uhe.getMessage();
            if (host != null) {
                int colon = host.indexOf(':');
                if (colon > 0) {
                    return host.substring(0, colon);
                }
            }
            return "UnknownHost";
        }
    }
}

启动项目，访问/index和/ero接口，可以看到项目中生成了app-collector.log和error-collector.log两个日志文件

我们将Springboot服务部署在192.168.11.31这台机器上。

Kafka安装和启用

• kafka下载地址：http://kafka.apache.org/downloads.html

• kafka安装步骤：首先kafka安装需要依赖与zookeeper，所以小伙伴们先准备好zookeeper环境（三个节点即可），然后我们来一起构建kafka broker。

## 解压命令：
tar -zxvf kafka_2.12-2.1.0.tgz -C /usr/local/
## 改名命令：
mv kafka_2.12-2.1.0/ kafka_2.12
## 进入解压后的目录，修改server.properties文件：
vim /usr/local/kafka_2.12/config/server.properties
## 修改配置：
broker.id=0
port=9092
host.name=192.168.11.51
advertised.host.name=192.168.11.51
log.dirs=/usr/local/kafka_2.12/kafka-logs
num.partitions=2
zookeeper.connect=192.168.11.111:2181,192.168.11.112:2181,192.168.11.113:2181

## 建立日志文件夹：
mkdir /usr/local/kafka_2.12/kafka-logs

##启动kafka：
/usr/local/kafka_2.12/bin/kafka-server-start.sh /usr/local/kafka_2.12/config/server.properties &

• 创建两个topic

## 创建topic
kafka-topics.sh --zookeeper 192.168.11.111:2181 --create --topic app-log-collector --partitions 1  --replication-factor 1
kafka-topics.sh --zookeeper 192.168.11.111:2181 --create --topic error-log-collector --partitions 1  --replication-factor 1

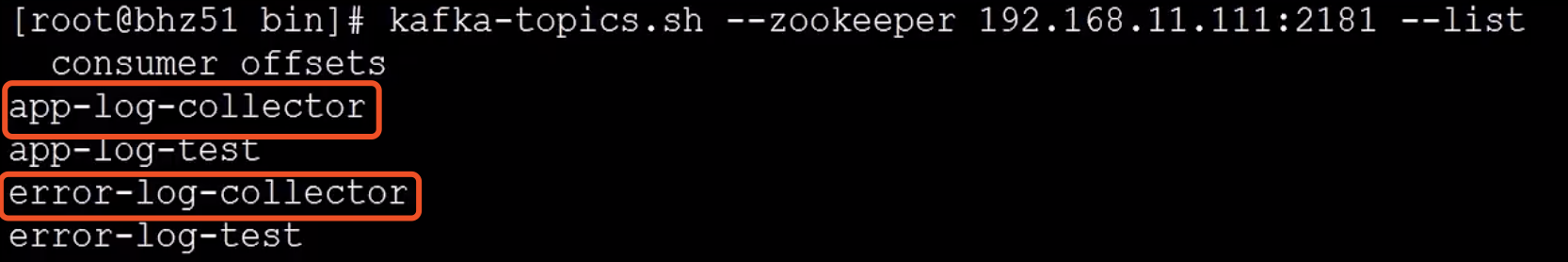

我们可以查看一下topic情况

kafka-topics.sh --zookeeper 192.168.11.111:2181 --topic app-log-test --describe

可以看到已经成功启用了app-log-collector和error-log-collector两个topic

filebeat安装和启用：

• filebeat下载

cd /usr/local/software
tar -zxvf filebeat-6.6.0-linux-x86_64.tar.gz -C /usr/local/
cd /usr/local
mv filebeat-6.6.0-linux-x86_64/ filebeat-6.6.0

• 配置filebeat，可以参考下方yml配置文件

vim /usr/local/filebeat-5.6.2/filebeat.yml

###################### Filebeat Configuration Example #########################
filebeat.prospectors:

- input_type: log

  paths:
    ## app-服务名称.log, 为什么写死，防止发生轮转抓取历史数据
    - /usr/local/logs/app-collector.log
  #定义写入 ES 时的 _type 值
  document_type: "app-log"
  multiline:
    #pattern: '^\s*(\d{4}|\d{2})\-(\d{2}|[a-zA-Z]{3})\-(\d{2}|\d{4})'   # 指定匹配的表达式（匹配以 2017-11-15 08:04:23:889 时间格式开头的字符串）
    pattern: '^\['                              # 指定匹配的表达式（匹配以 "{ 开头的字符串）
    negate: true                                # 是否匹配到
    match: after                                # 合并到上一行的末尾
    max_lines: 2000                             # 最大的行数
    timeout: 2s                                 # 如果在规定时间没有新的日志事件就不等待后面的日志
  fields:
    logbiz: collector
    logtopic: app-log-collector   ## 按服务划分用作kafka topic
    evn: dev

- input_type: log

  paths:
    - /usr/local/logs/error-collector.log
  document_type: "error-log"
  multiline:
    #pattern: '^\s*(\d{4}|\d{2})\-(\d{2}|[a-zA-Z]{3})\-(\d{2}|\d{4})'   # 指定匹配的表达式（匹配以 2017-11-15 08:04:23:889 时间格式开头的字符串）
    pattern: '^\['                              # 指定匹配的表达式（匹配以 "{ 开头的字符串）
    negate: true                                # 是否匹配到
    match: after                                # 合并到上一行的末尾
    max_lines: 2000                             # 最大的行数
    timeout: 2s                                 # 如果在规定时间没有新的日志事件就不等待后面的日志
  fields:
    logbiz: collector
    logtopic: error-log-collector   ## 按服务划分用作kafka topic
    evn: dev

output.kafka:
  enabled: true
  hosts: ["192.168.11.51:9092"]
  topic: '%{[fields.logtopic]}'
  partition.hash:
    reachable_only: true
  compression: gzip
  max_message_bytes: 1000000
  required_acks: 1
logging.to_files: true

• filebeat启动：

检查配置是否正确

cd /usr/local/filebeat-6.6.0
./filebeat -c filebeat.yml -configtest
## Config OK

启动filebeat

/usr/local/filebeat-6.6.0/filebeat &

检查是否启动成功

ps -ef | grep filebeat

可以看到filebeat已经启动成功

然后我们访问192.168.11.31:8001/index和192.168.11.31:8001/err，再查看kafka的logs文件，可以看到已经生成了app-log-collector-0和error-log-collector-0文件，说明filebeat已经帮我们把数据收集好放到了kafka上。

logstash安装

logstash的安装可以参考
