RabbitMQ消息队列及各种Exchange类型详解
日期： 2018-12-06 分类： 个人收藏 330次阅读

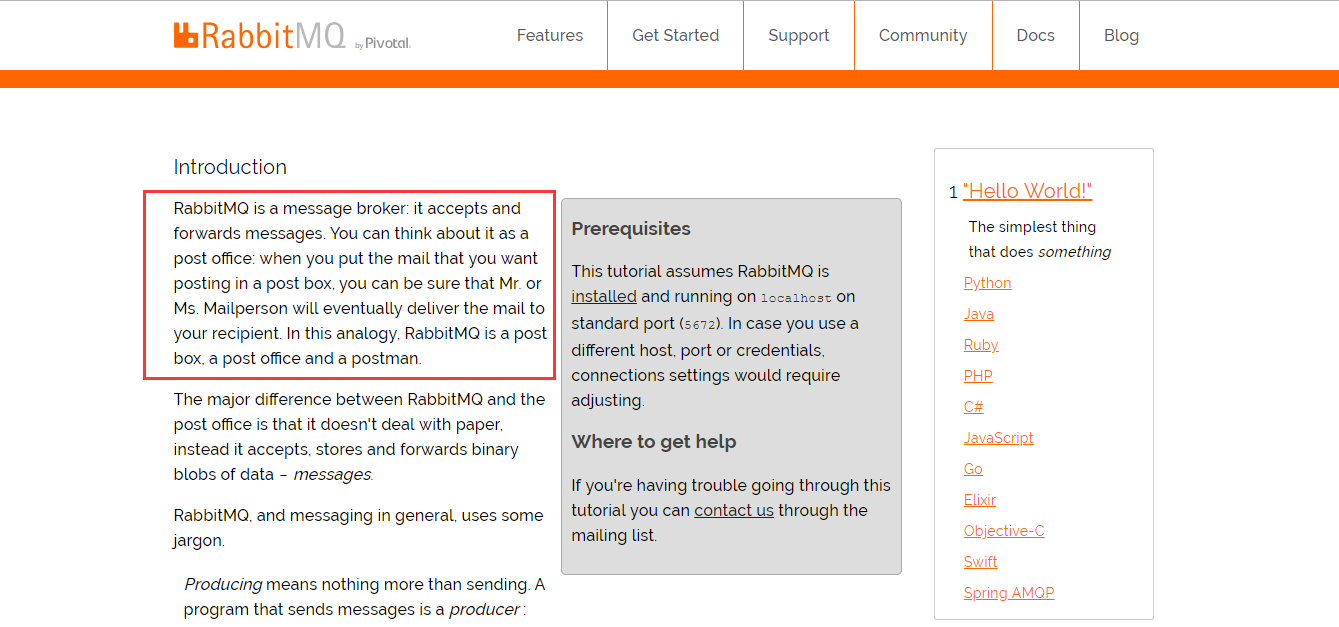

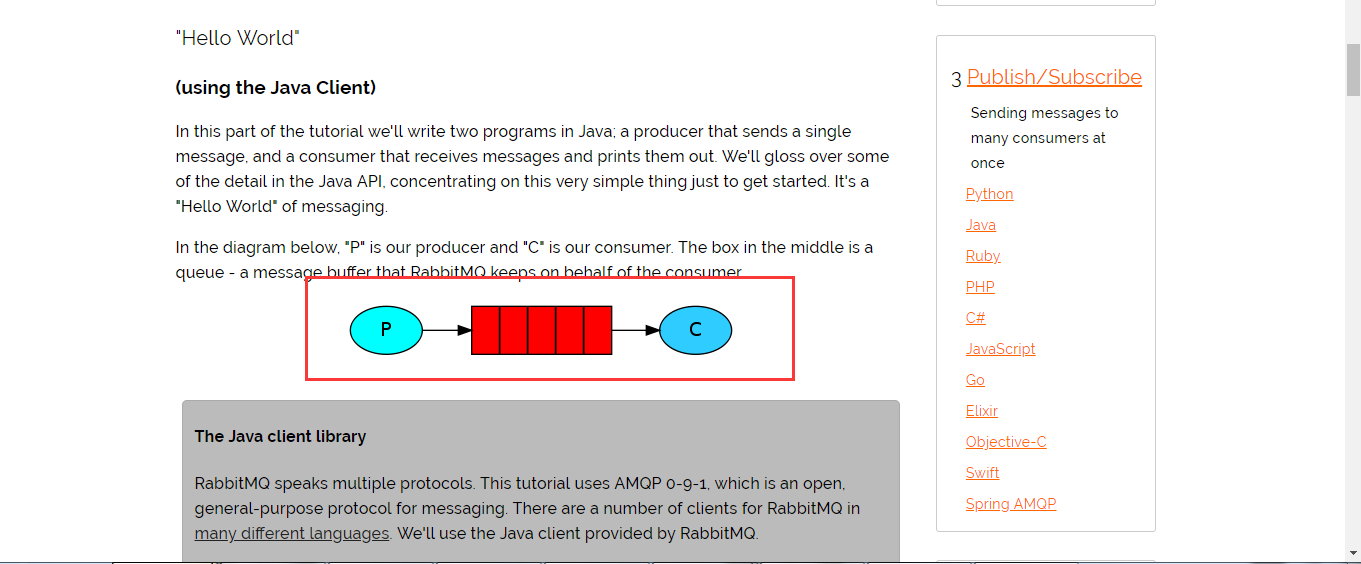

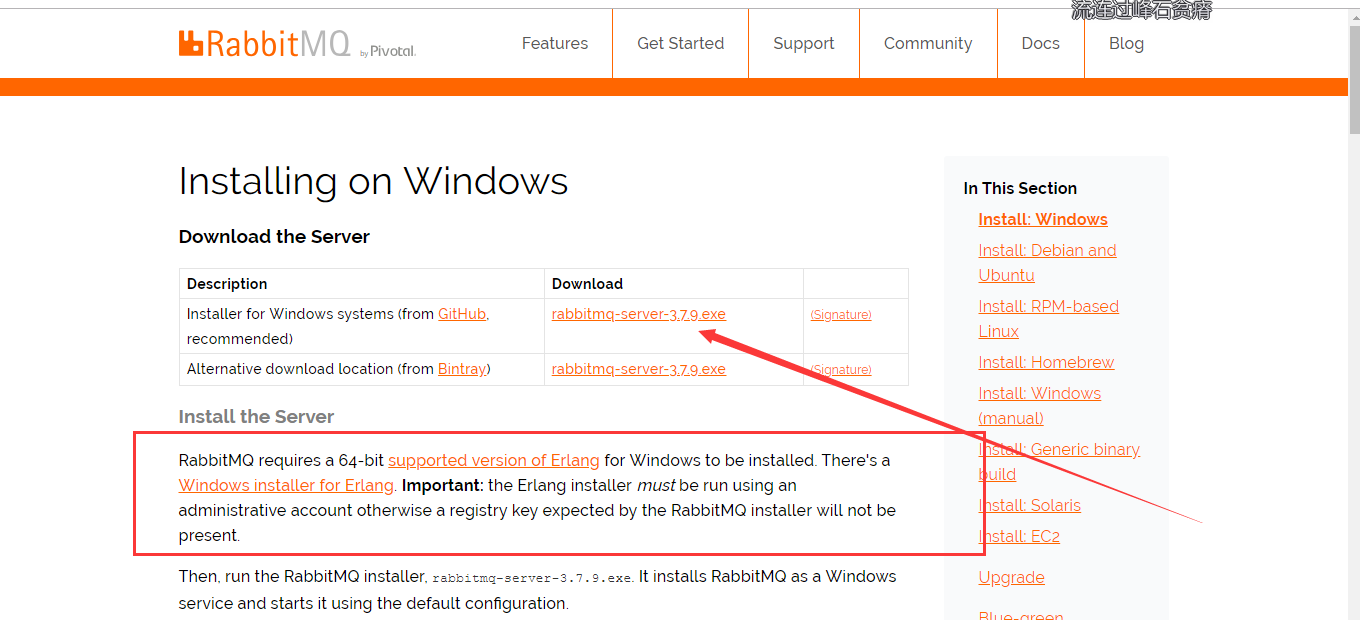

关于RabbitMQ，我们就从这张官网截图来开始说吧！
对于任何一门技术，我们可能都比较关心“what”,“how”,“when”，当然还是那句话，看官方文档。
上图圈出来的一段话就是对我们RabbitMQ的一个大致介绍了，其实说白了就是负责转发消息的。下图给出了一个最简单的消息转发模型，p（producer ）为我们的的消息提供方，c（consumer ）为消息接收方。
在说exchange之前呢，我们需要先在本机安装我们的RabbitMQ for windows版本（在安装之前呢），然后呢来个最简单的例子，看下RabbitMQ是 怎么工作的

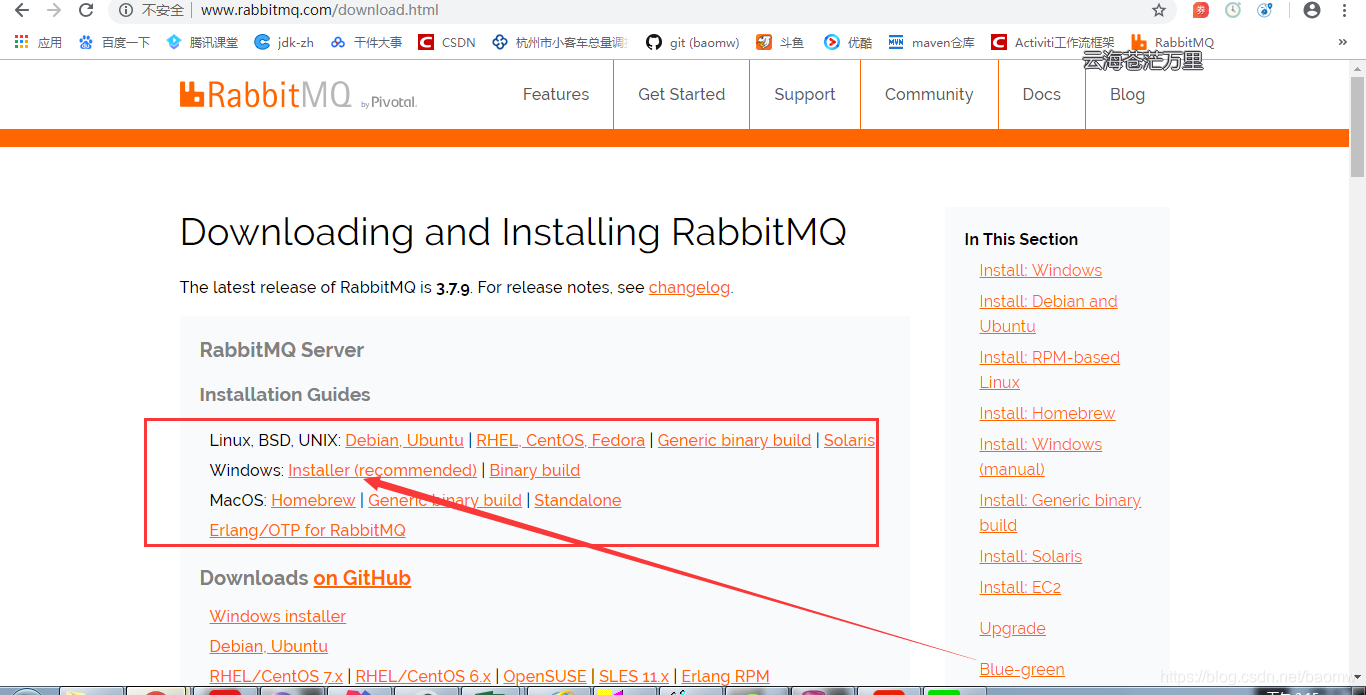

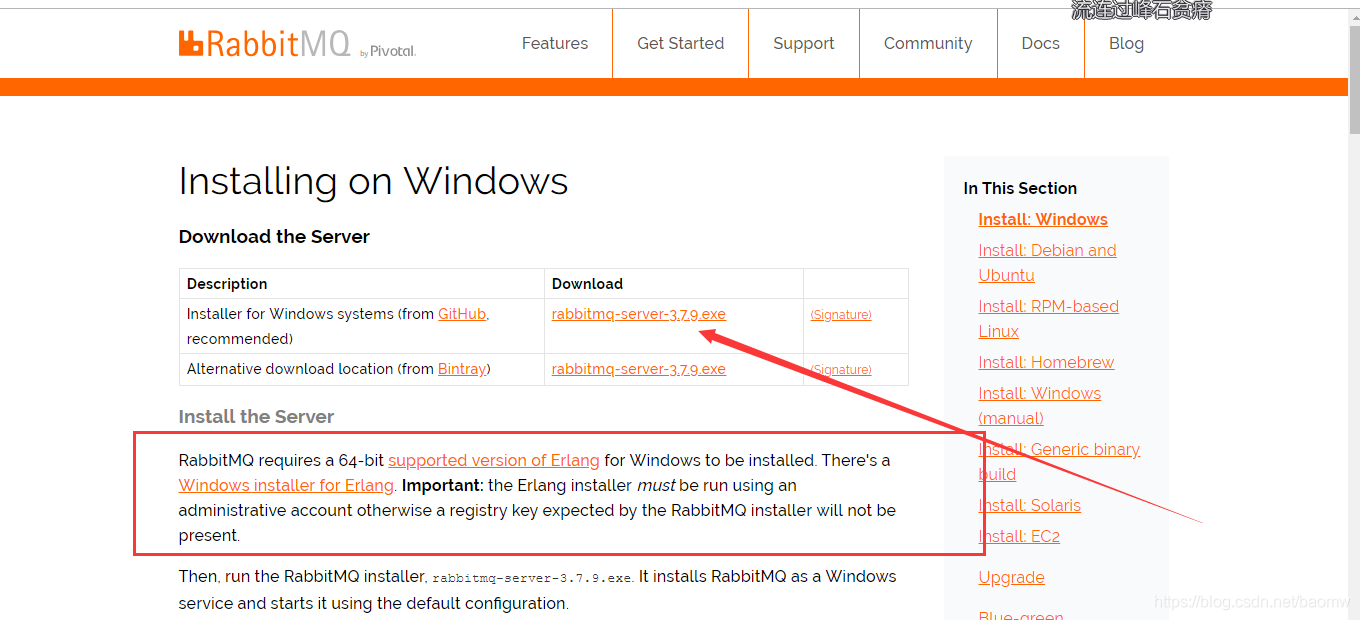

这里呢我们下在windows版本即可，不过在安装RabbitMQ之前呢，必须要先安装indows installer for Erlang，这里旨在说明RabbitMQ的使用，安装部分不做过多赘述（有兴趣的可以私聊我哦！）。
首先code出我们的消息提供者
public class Sender {
private final static String QUEUE_NAME = "hello";
public static void main(String[] args) throws Exception{
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
publis(factory);
}
public static void publis(ConnectionFactory factory ){
Timer time = new Timer();
time.schedule(new TimerTask(){
int num = 1;
@Override
public void run() {
try (Connection connection = factory.newConnection();
Channel channel = connection.createChannel()) {
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
SimpleDateFormat df = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
String message = df.format(new Date())+"已发布!"+"--------------:"+num;
channel.basicPublish("", QUEUE_NAME, null, message.getBytes("UTF-8"));
System.out.println(" [x] Sent '" + message + "'");
num++;
} catch (Exception e) {
e.printStackTrace();
}
}
}, 1000, 2000);
}
}
消息接收者代码如下
public class Recv {
private final static String QUEUE_NAME = "hello";
public static void main(String[] argv) throws Exception {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
System.out.println(" [*] Waiting for messages. To exit press CTRL+C");
DeliverCallback deliverCallback = (consumerTag, delivery) -> {
String message = new String(delivery.getBody(), "UTF-8");
System.out.println(" [x] Received '" + message + "'");
};
boolean autoAck = false;
channel.basicConsume(QUEUE_NAME, autoAck, deliverCallback, consumerTag -> { });
}
}
首先呢在producer 那里声明一个queueName，然后再consumer处订阅指定的queueName的消息即可。

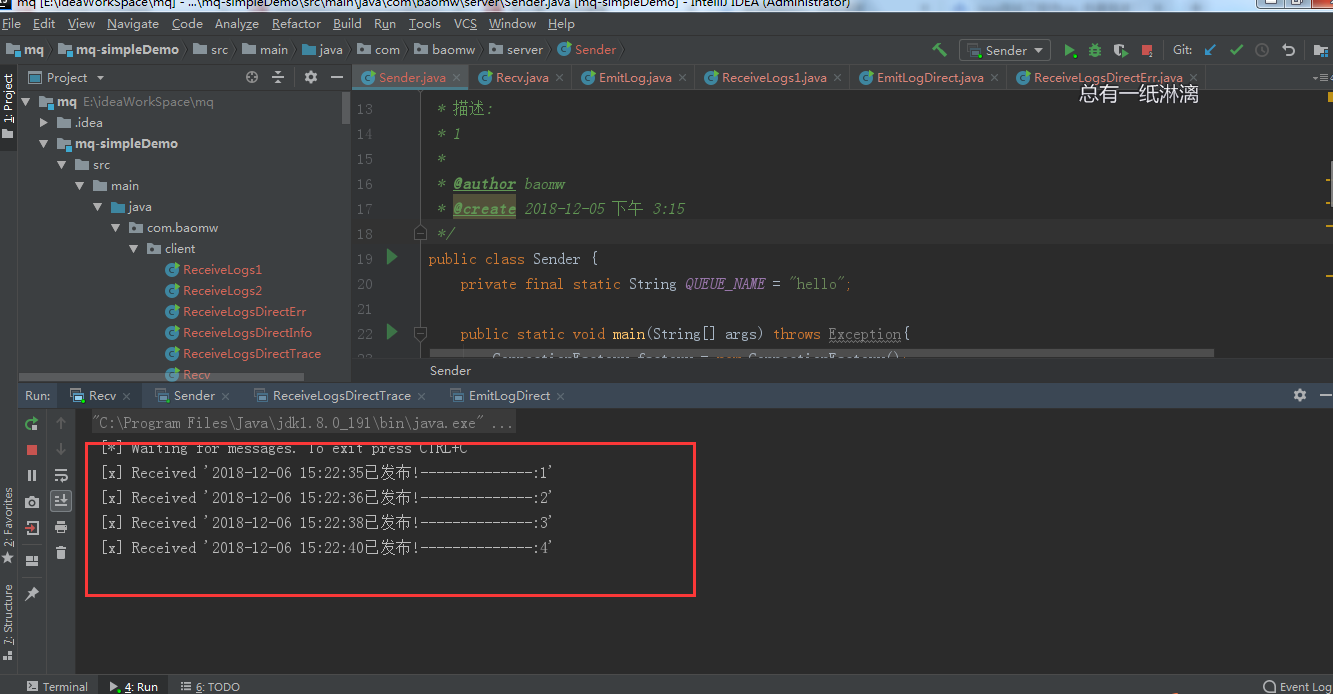

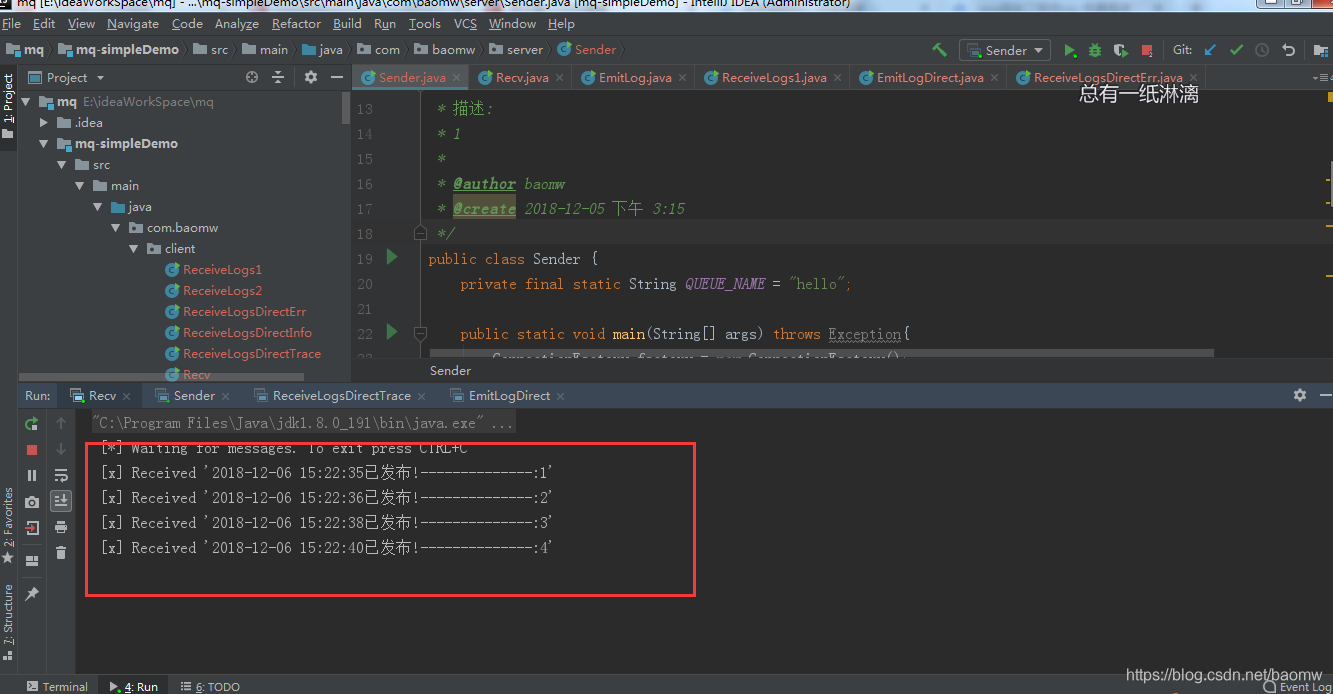

这里我启动一个定时器，模拟实时传输消息，如下图可以看到可以实时打印我们接收到的发布消息，
单人这种一个队列，如果出现多个consumer的时候，RabbitMQ是怎么处理的呢？

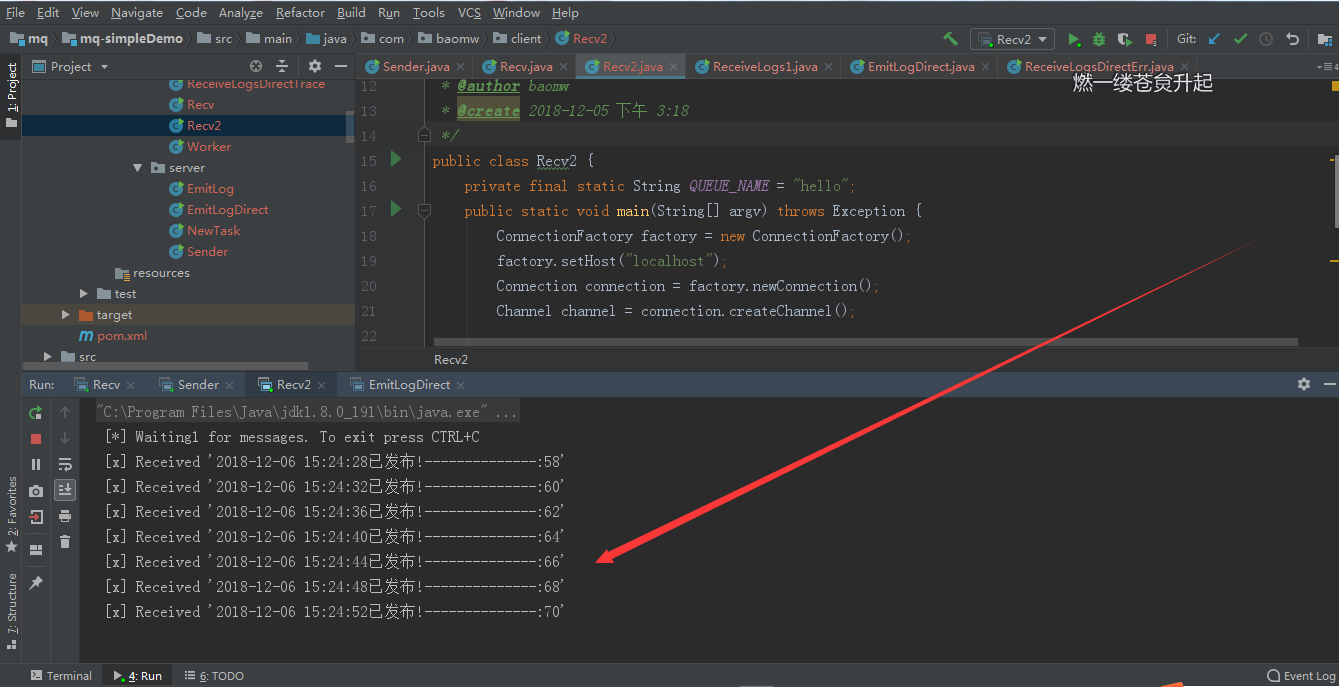

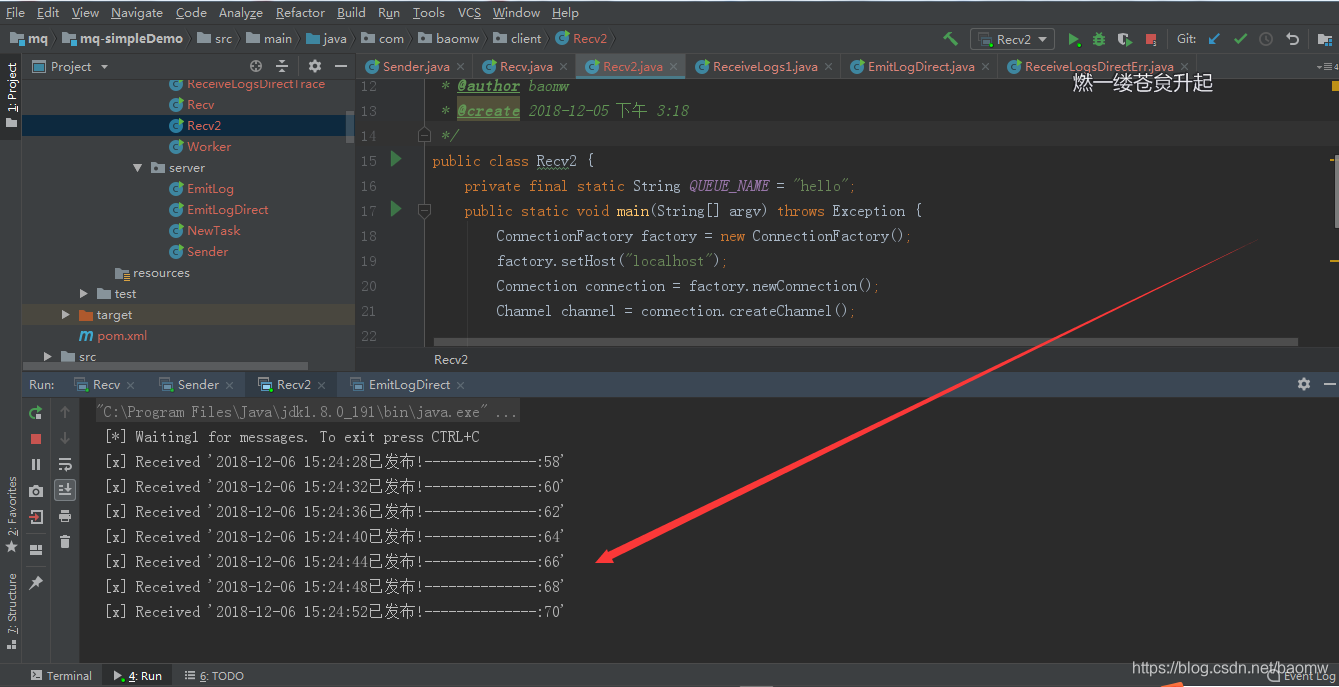

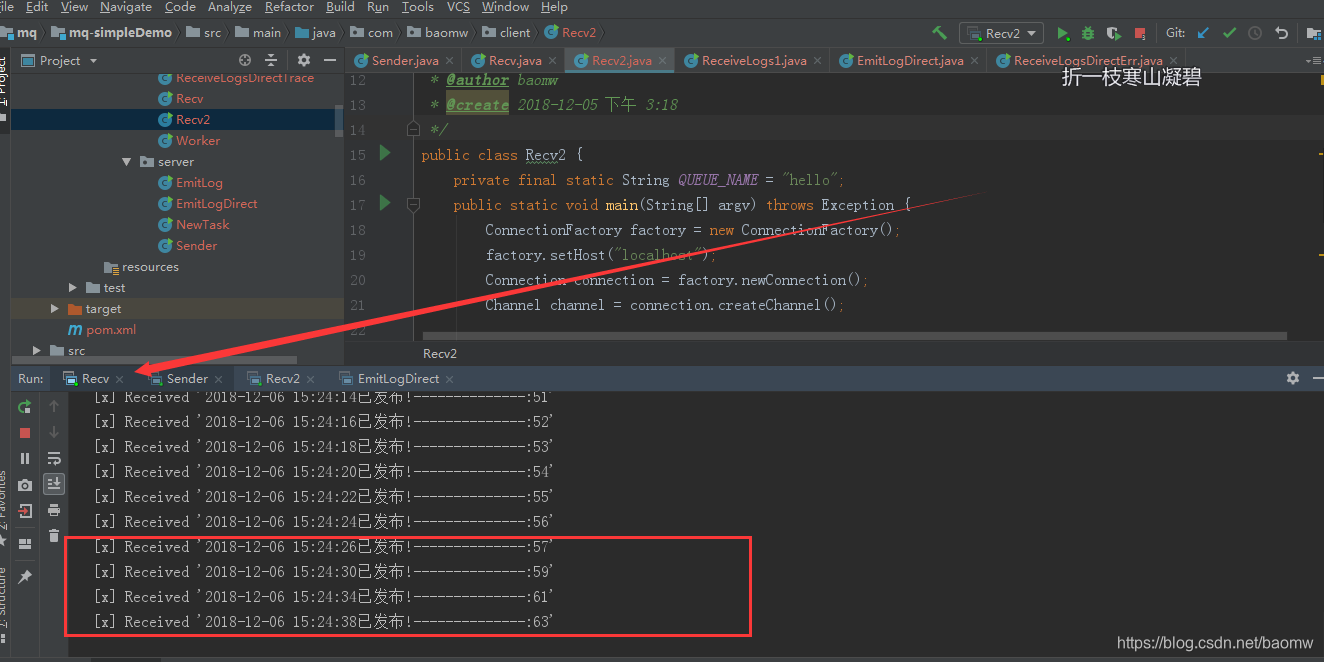

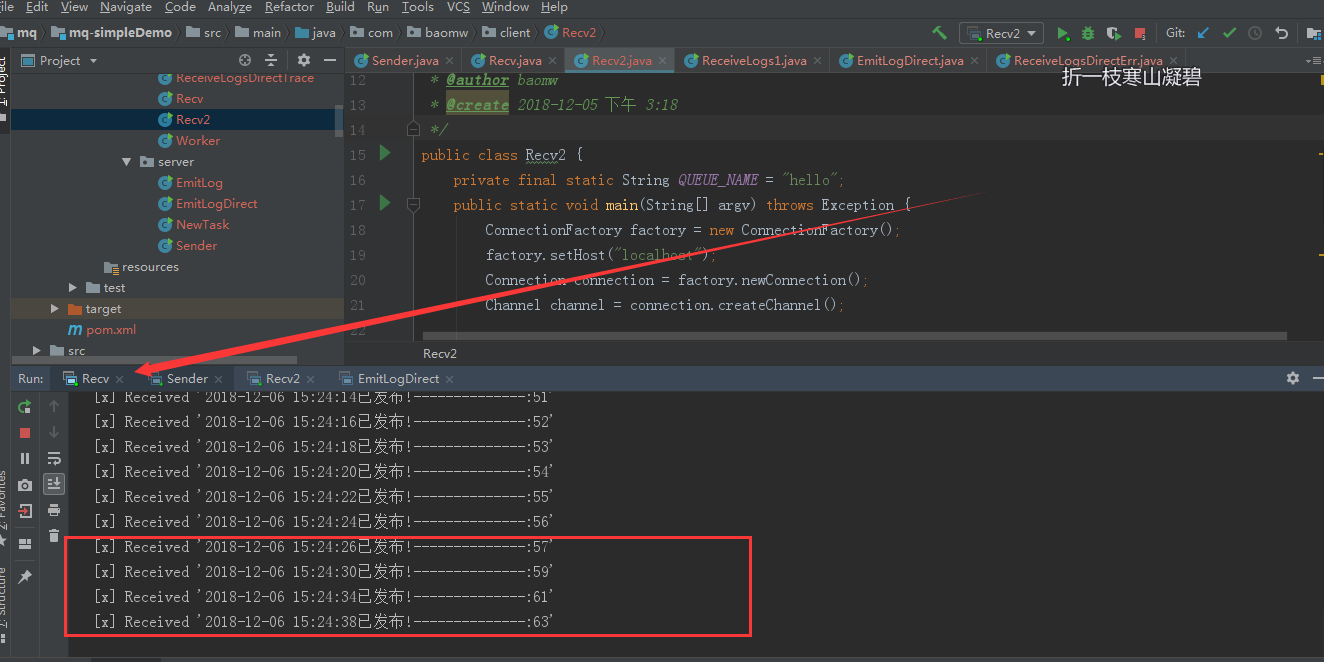

于是乎，增加一个consumer，可以看到Recv从56开始，打印的全是奇数，Recv2打印的全是偶数，可以说明，当一个队列有多个consumer的时候，会采用轮循算法依次向每个consumer发送消息。

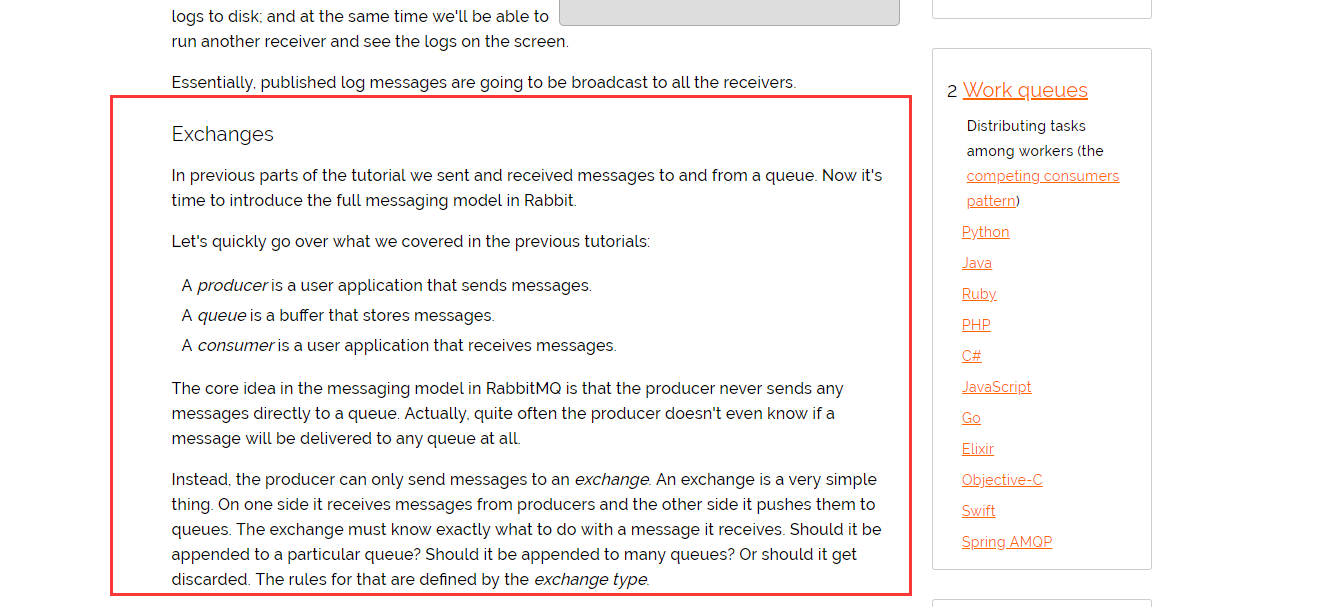

好了说完这个最简单的应用，我们就来说下我们RabbitMQ的Exchange机制，当然还是看我们的官方文档，因为最权威啊!

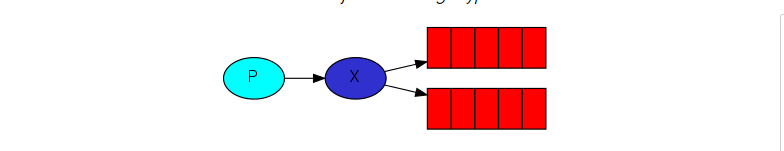

什么意思呢！结合上图，就是我们producer 发送消息的时候不是直接发送到具体的queue，而是先讲消息发到一个中转站（X），然后再由中转站将消息根据相应的策略，绑定到对应的queue中去。
There are a few exchange types available: direct, topic, headers and fanout.
也就是说我们的exchange types有四种：direct, topic, headers and fanout.分别是什么呢？下面我们来一一介绍。
1，fanout（订阅）

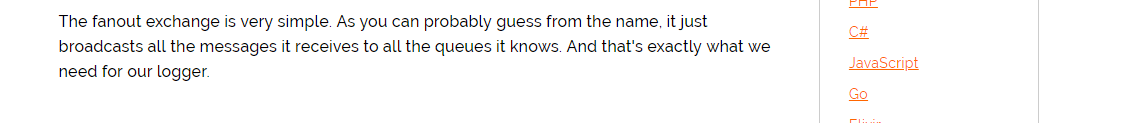

fanout是什么呢，官方文档是这么说的
也就是说，fanout类型的Exchange可以将producer 发送的消息绑定到所有订阅的队列中去，也就是：Publish/Subscribe
核心代码：channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
就是需要声明一个Exchange type 和Exchange name;
服务端代码如下
public class EmitLog {
private static final String EXCHANGE_NAME = "logs";
public static void main(String[] argv) throws Exception {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
publis(factory);
}
public static void publis(ConnectionFactory factory ){
Timer time = new Timer();
time.schedule(new TimerTask(){
int num = 1;
@Override
public void run() {
try (Connection connection = factory.newConnection();
Channel channel = connection.createChannel()) {
channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
String message ="info: Hello World!" +num;
channel.basicPublish(EXCHANGE_NAME, "", null, message.getBytes("UTF-8"));
System.out.println(" [x] Sent '" + message + "'");
num++;
} catch (TimeoutException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
}
}
}, 1000, 2000);
}
}
客户端代码如下：
public class ReceiveLogs1 {
private static final String EXCHANGE_NAME = "logs";
public static void main(String[] argv) throws Exception {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
String queueName = channel.queueDeclare().getQueue();
channel.queueBind(queueName, EXCHANGE_NAME, "");
System.out.println(" [*] Waiting for messages. To exit press CTRL+C");
DeliverCallback deliverCallback = (consumerTag, delivery) -> {
String message = new String(delivery.getBody(), "UTF-8");
System.out.println(" [x] Received '" + message + "'");
};
channel.basicConsume(queueName, true, deliverCallback, consumerTag -> { });
}
}

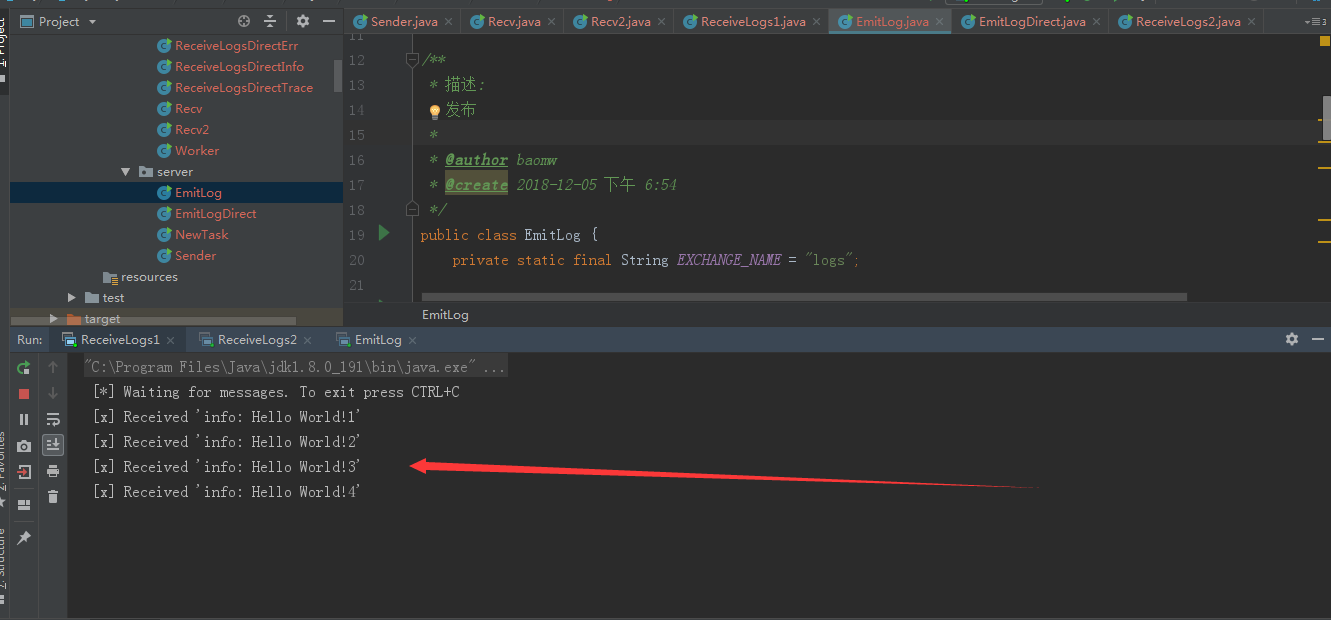

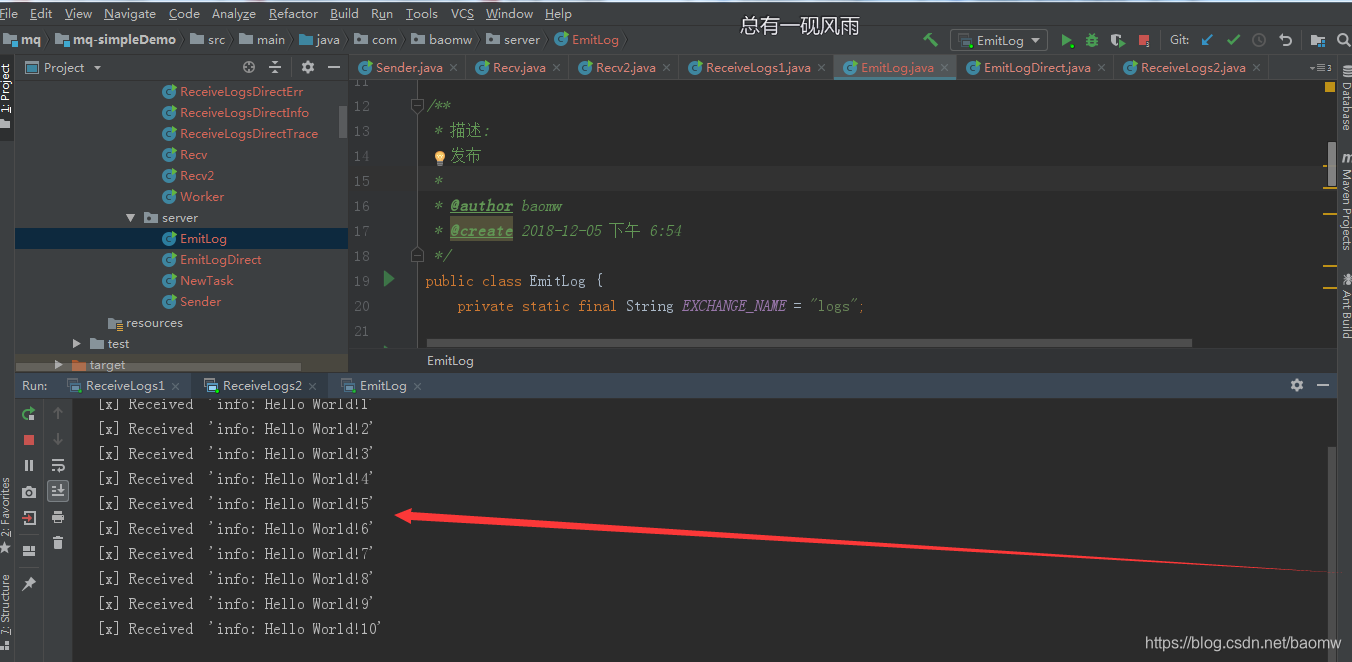

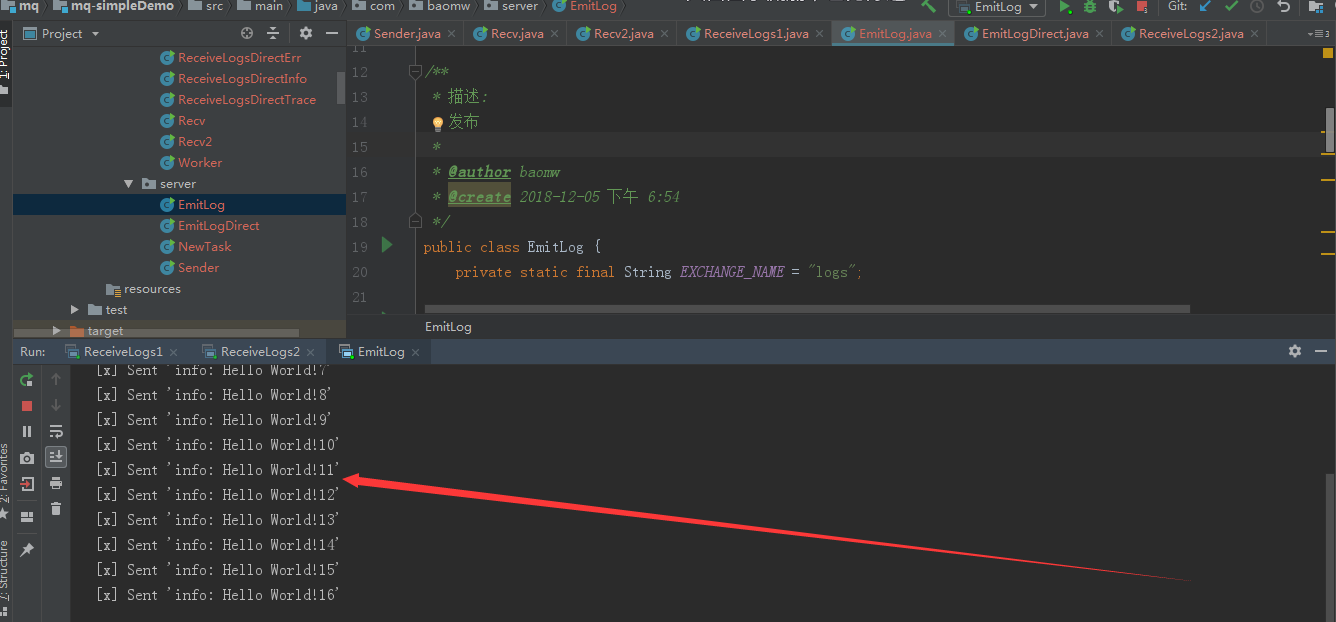

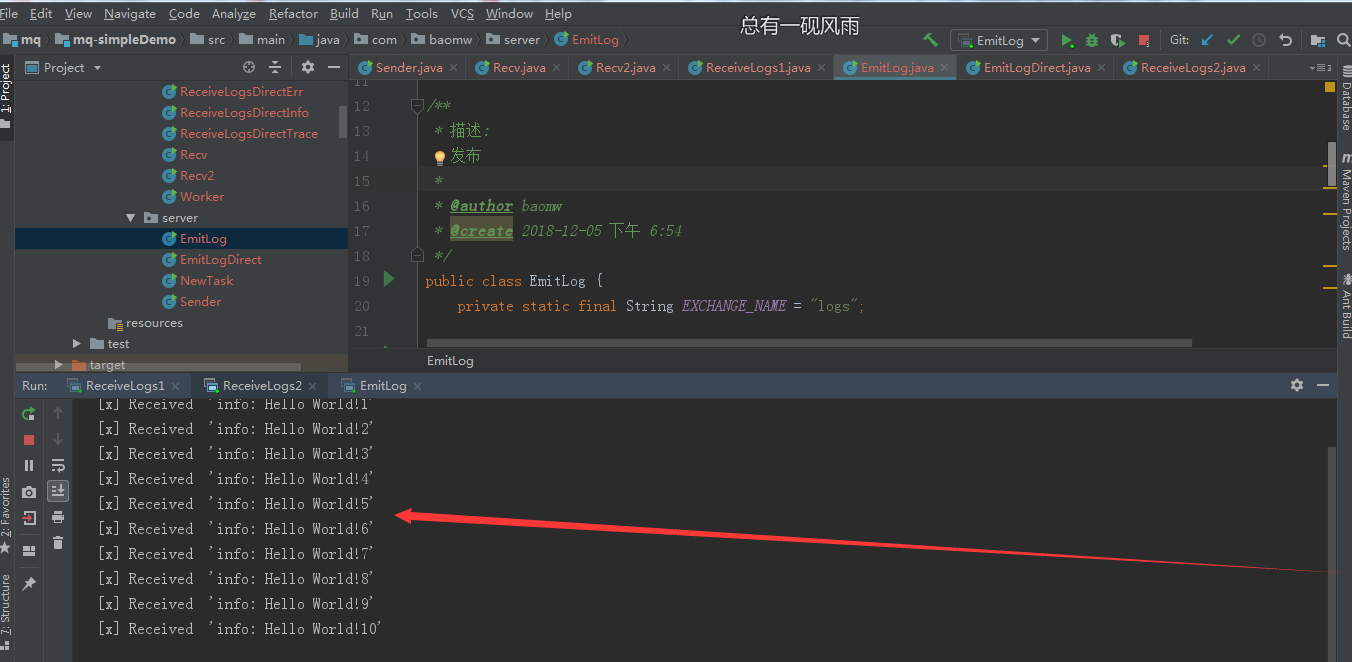

客户端2代码一样，就不重复粘贴了，运行效果如下：
可以看到producer 发送的所有消息，可以被所有的consumer接收。也就是我们的发布/订阅机制了。
2，direct（路由）

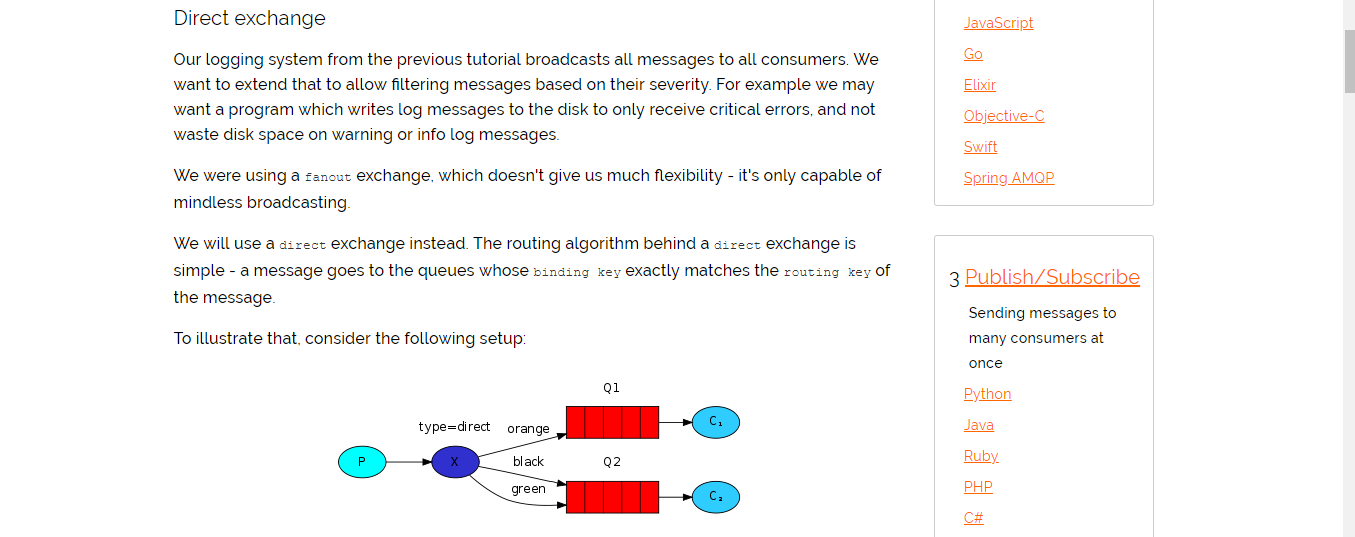

同样，我们还是从官方文档看起，什么事direct呢，结合上图，可以看到就是我们producer发送消息的时候需要设置一个消息类型，然后consumer订阅的时候只订阅自己需要的消息类型即可。
具体什么意思呢，我们还是以一个例子来说明下：这里呢，我们producer 可以发送三种日志消息：info，error，trace
然后声明三个consumer，分别去订阅对应类型的日志消息。
producer 代码如下：
public class EmitLogDirect {
private static final String EXCHANGE_NAME = "direct_logs";
public static void main(String[] argv) throws Exception {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
try (Connection connection = factory.newConnection();
Channel channel = connection.createChannel()) {
channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
String[] type = new String[]{"info","trace","error"};
String message = "message send!";
for(String severity: type){
String msg = message + severity;
channel.basicPublish(EXCHANGE_NAME, severity, null, message.getBytes("UTF-8"));
System.out.println(" [x] Sent '" + severity + "':'" + message + "'");
}
}
}
}
consumer1代码如下：
public class ReceiveLogsDirectErr {
private static final String EXCHANGE_NAME = "direct_logs";
public static void main(String[] argv) throws Exception {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
String queueName = channel.queueDeclare().getQueue();
// if (argv.length < 1) {
// System.err.println("Usage: ReceiveLogsDirect [info] [warning] [error]");
// System.exit(1);
// }
for (String severity : new String[]{"error"}) {
channel.queueBind(queueName, EXCHANGE_NAME, severity);
}
System.out.println(" [*] Waiting for messages. To exit press CTRL+C");
DeliverCallback deliverCallback = (consumerTag, delivery) -> {
String message = new String(delivery.getBody(), "UTF-8");
System.out.println(" [x] Received '" + delivery.getEnvelope().getRoutingKey() + "':'" + message + "'");
};
channel.basicConsume(queueName, true, deliverCallback, consumerTag -> {
});
}
}
consumer2和consumer3代码类似，不重复粘贴了；

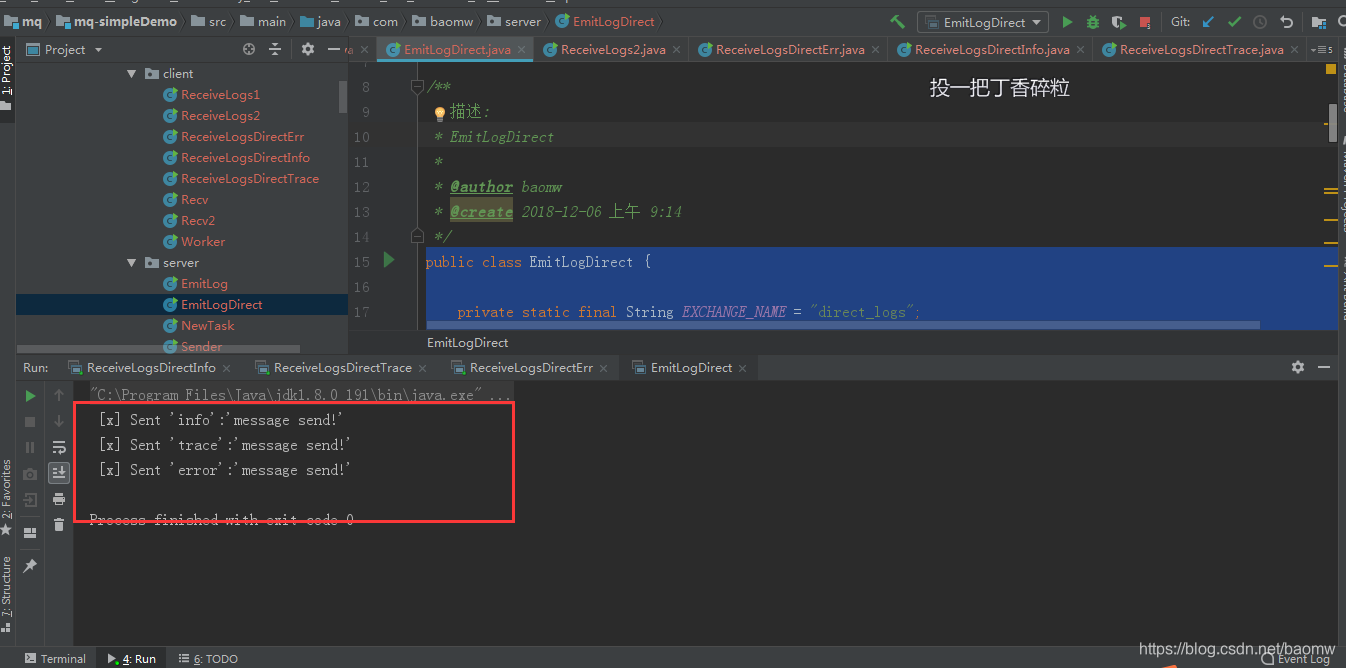

produco发送消息的时候：channel.basicPublish(EXCHANGE_NAME, severity, null, message.getBytes("UTF-8"));
设置了一个severity参数，我这里循环调用三次：分别是info，error，trace

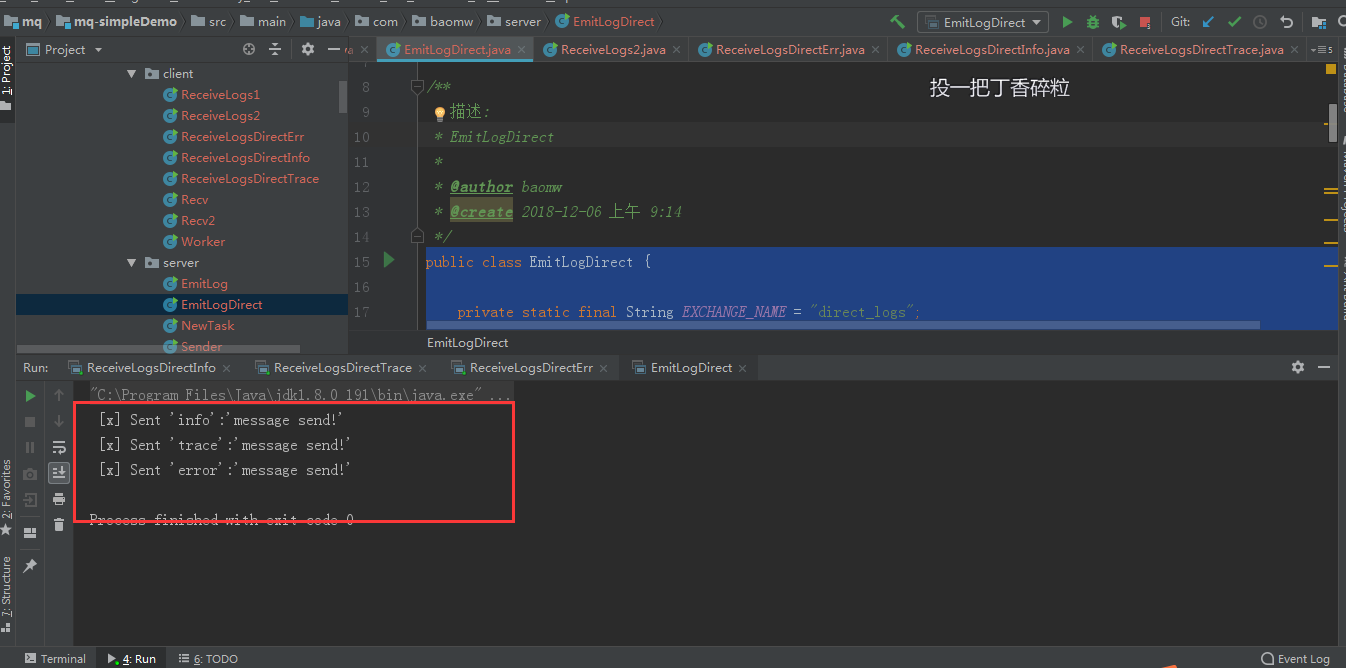

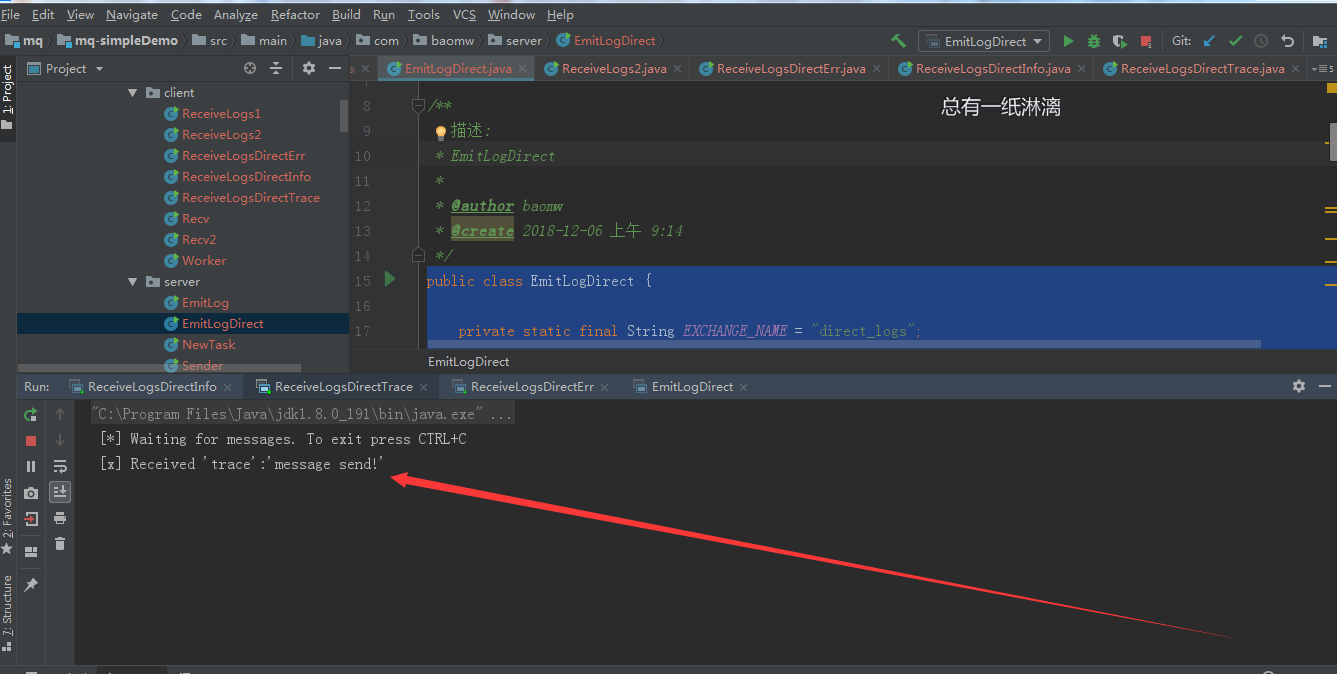

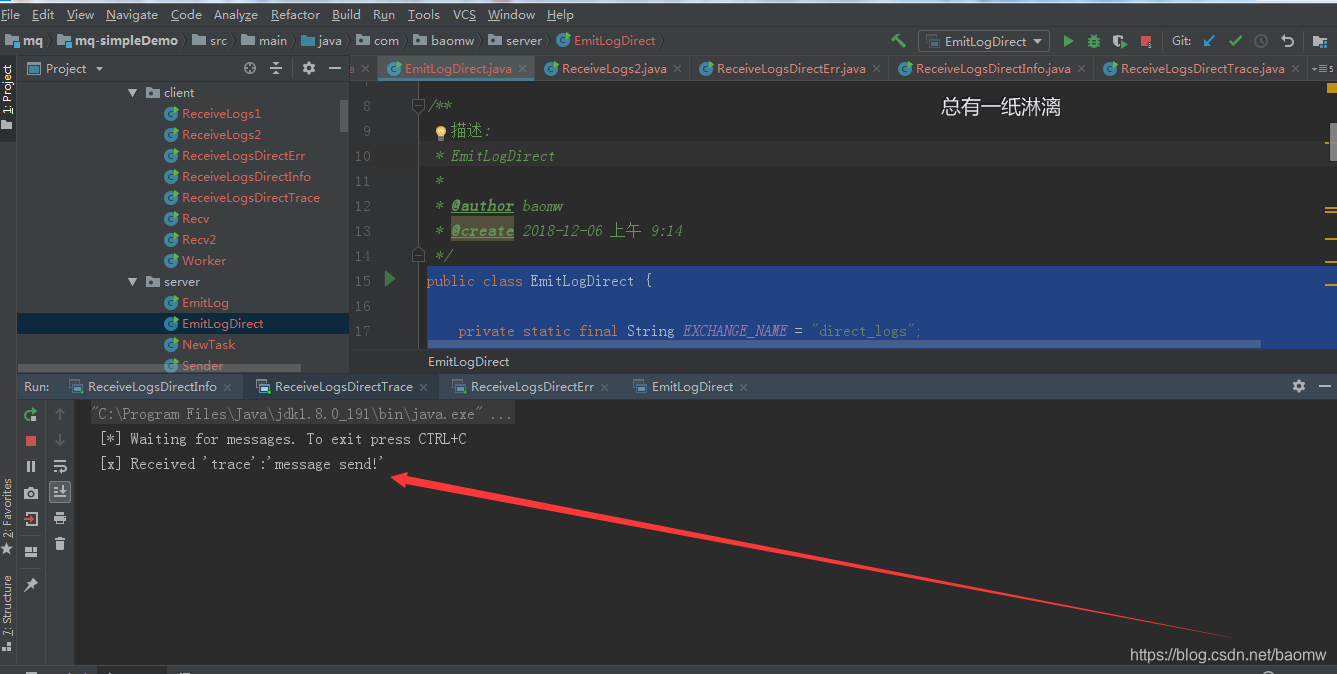

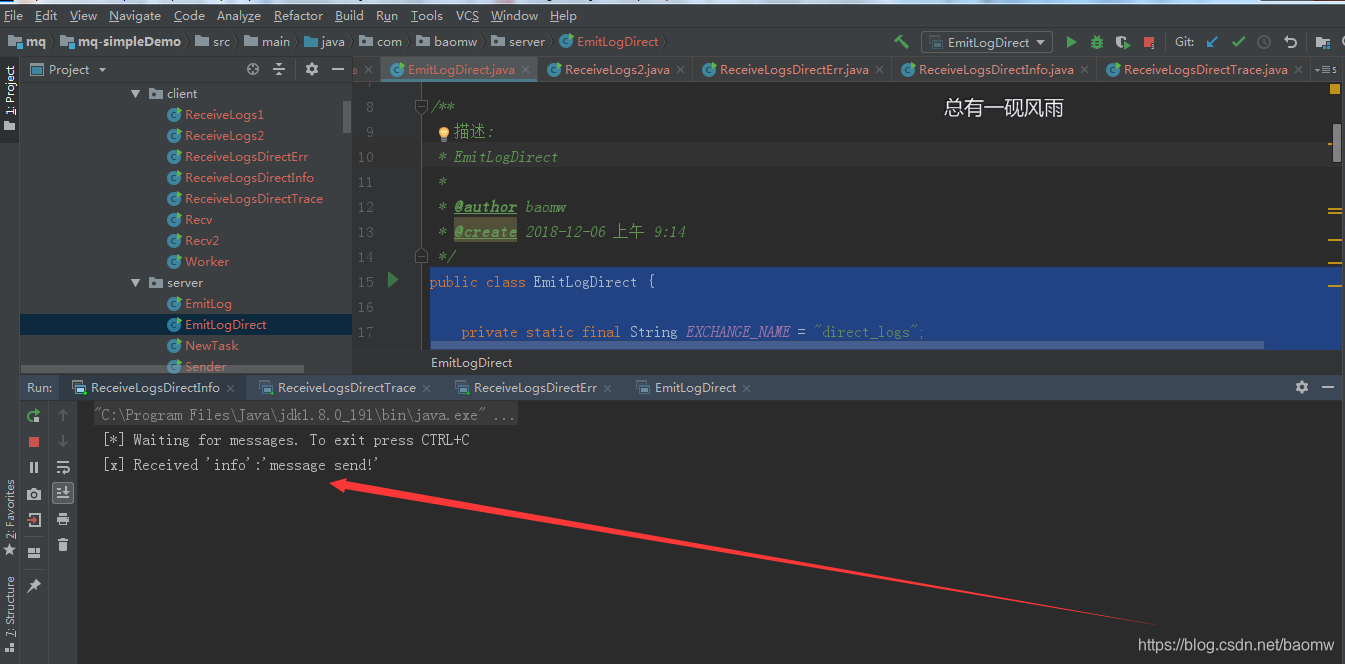

可以看到producor讲三个消息发出去后，各自的consumer都只接收自己需要的message了。

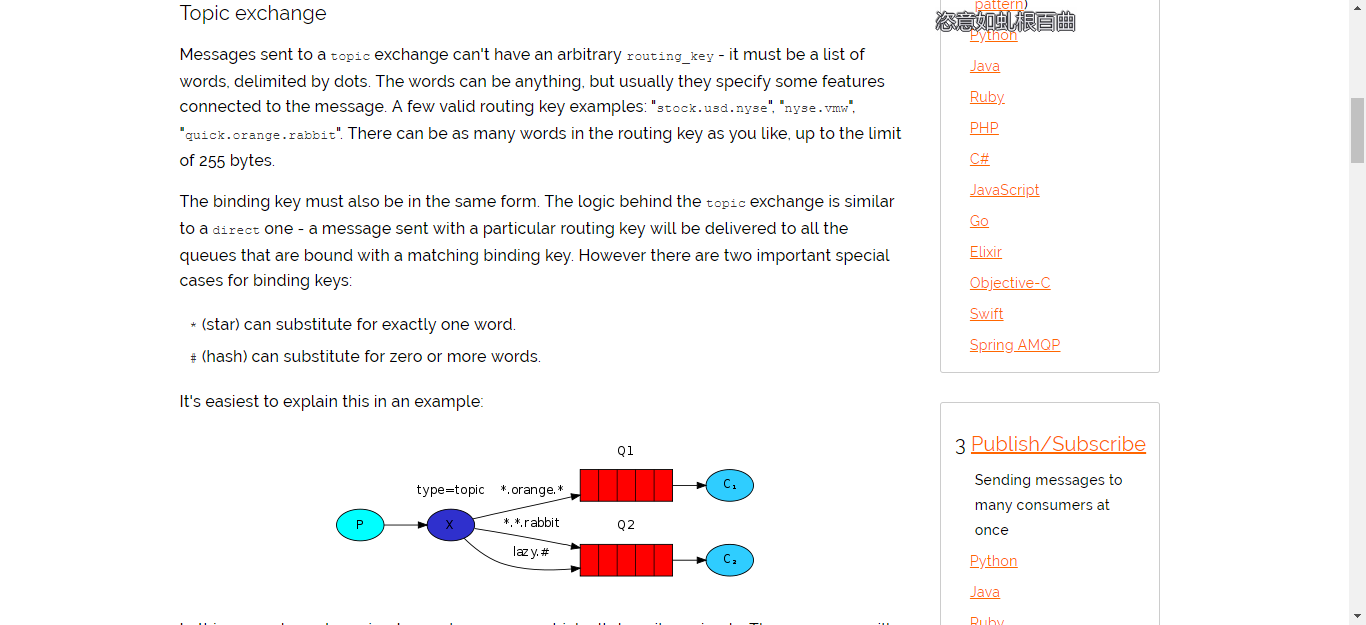

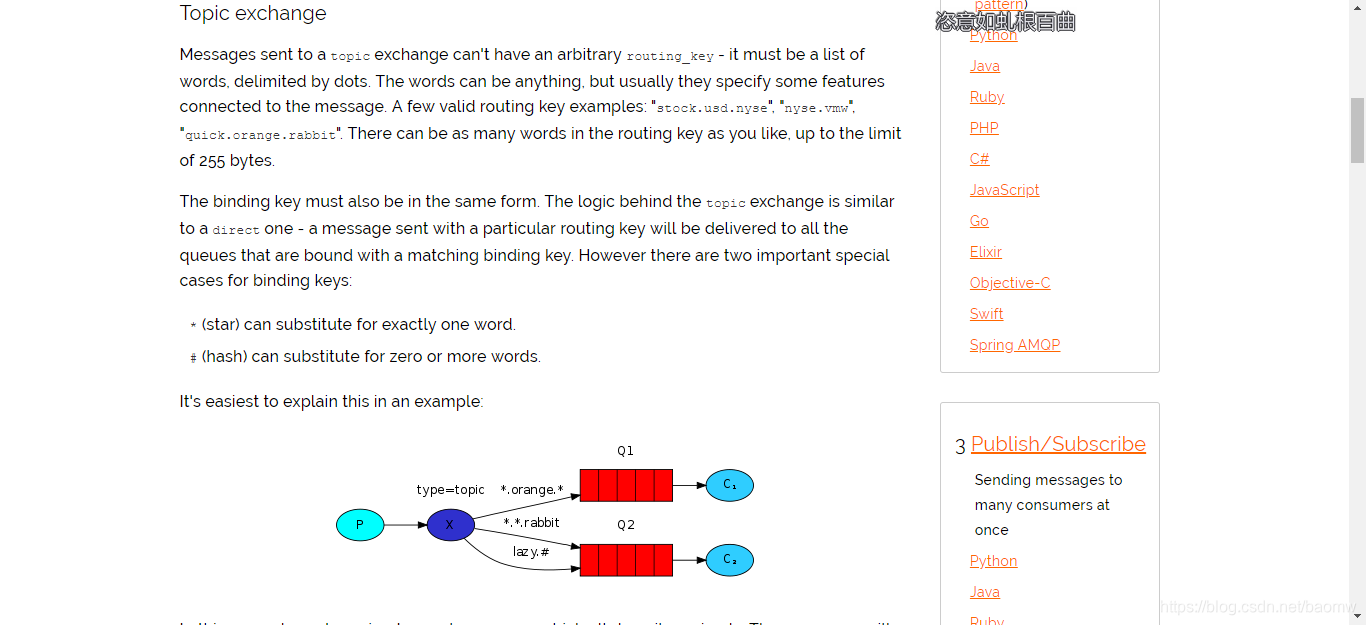

3，topic（主题）
可以看出，有时候我们的direct并不能满足我们的业务需求，因为direct只能绑定一个固定的消息类型，但是我们的topic就可以使用通配符，绑定一类的消息类型。
* (star) can substitute for exactly one word.
# (hash) can substitute for zero or more words.
* 表示任一字符
#表示任意多个或0个字符
什么意思呢：还是来看个例子：
producor代码：
public class EmitLogTopic {
private static final String EXCHANGE_NAME = "topic_logs";
public static void main(String[] argv) throws Exception {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
try (Connection connection = factory.newConnection();
Channel channel = connection.createChannel()) {
channel.exchangeDeclare(EXCHANGE_NAME, "topic");
String[] type = new String[]{"log.err","log.out","log.trace"};
String message = "message send";
for(String severity: type){
String msg = message + severity;
channel.basicPublish(EXCHANGE_NAME, severity, null, message.getBytes("UTF-8"));
System.out.println(" [x] Sent '" + severity + "':'" + message + "'");
}
}
}
}
consumer1代码：
public class ReceiveLogsTopic1 {
private static final String EXCHANGE_NAME = "topic_logs";
public static void main(String[] argv) throws Exception {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(EXCHANGE_NAME, "topic");
String queueName = channel.queueDeclare().getQueue();
channel.queueBind(queueName, EXCHANGE_NAME, "log.#");
System.out.println(" [*] Waiting for messages. To exit press CTRL+C");
DeliverCallback deliverCallback = (consumerTag, delivery) -> {
String message = new String(delivery.getBody(), "UTF-8");
System.out.println(" [x] Received '" +
delivery.getEnvelope().getRoutingKey() + "':'" + message + "'");
};
channel.basicConsume(queueName, true, deliverCallback, consumerTag -> { });
}
}
consumer2代码：
public class ReceiveLogsTopic2 {
private static final String EXCHANGE_NAME = "topic_logs";
public static void main(String[] argv) throws Exception {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(EXCHANGE_NAME, "topic");
String queueName = channel.queueDeclare().getQueue();
channel.queueBind(queueName, EXCHANGE_NAME, "#.err");
channel.queueBind(queueName, EXCHANGE_NAME, "#.trace");
System.out.println(" [*] Waiting for messages. To exit press CTRL+C");
DeliverCallback deliverCallback = (consumerTag, delivery) -> {
String message = new String(delivery.getBody(), "UTF-8");
System.out.println(" [x] Received '" +
delivery.getEnvelope().getRoutingKey() + "':'" + message + "'");
};
channel.basicConsume(queueName, true, deliverCallback, consumerTag -> { });
}
}
可以看到，在producor中，发布三个消息：log.err，log.out，log.trace
在consumer1中订阅所有以log.开头的消息类型。
`channel.queueBind(queueName, EXCHANGE_NAME, "log.#");`
在consumer2中订阅所有以.err结尾或.trace结尾的所有消息类型。
channel.queueBind(queueName, EXCHANGE_NAME, "#.err");
channel.queueBind(queueName, EXCHANGE_NAME, "#.trace");

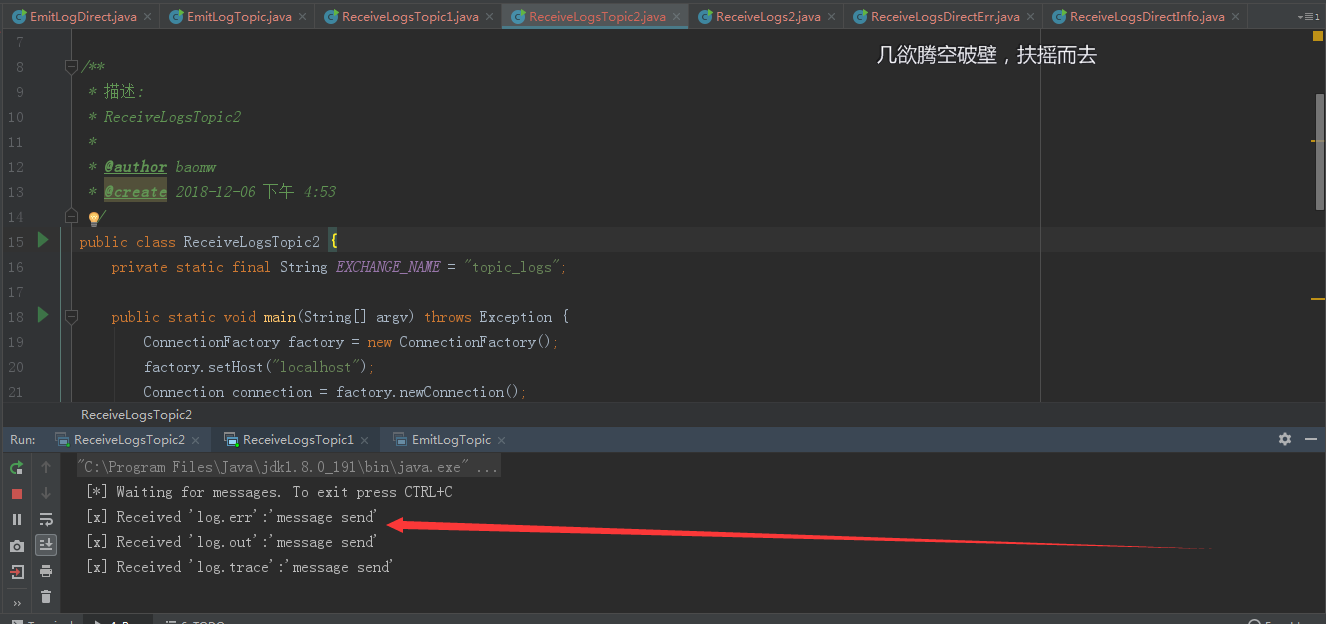

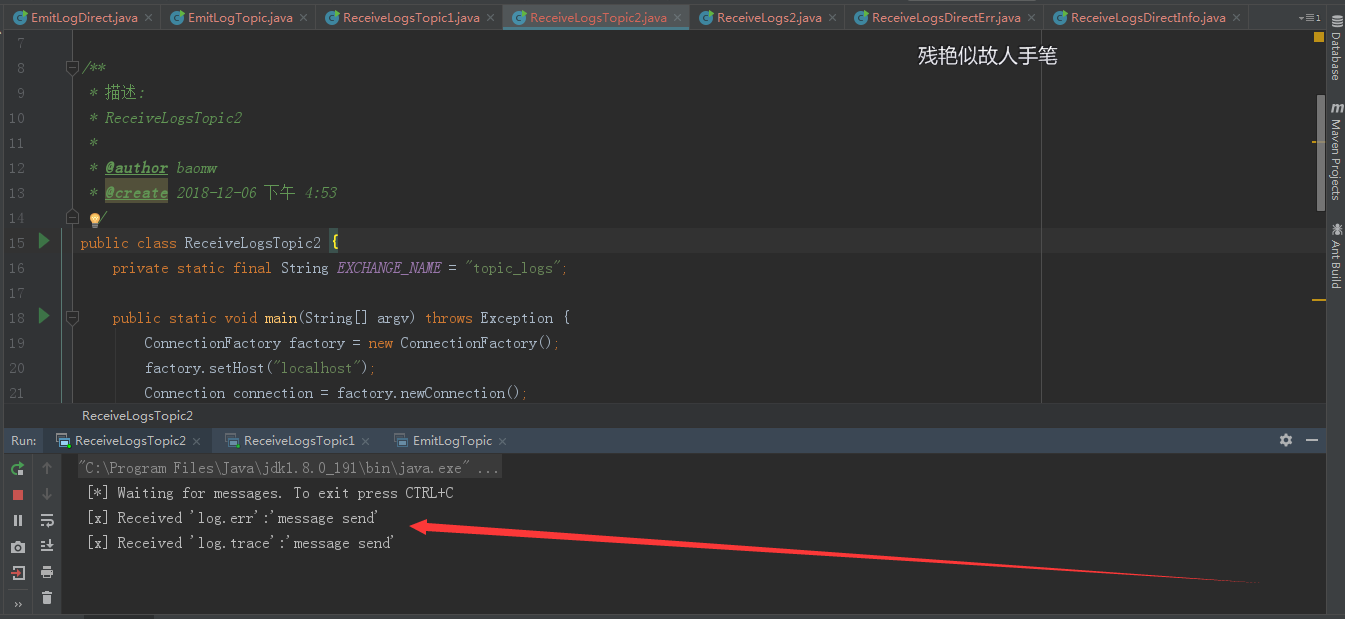

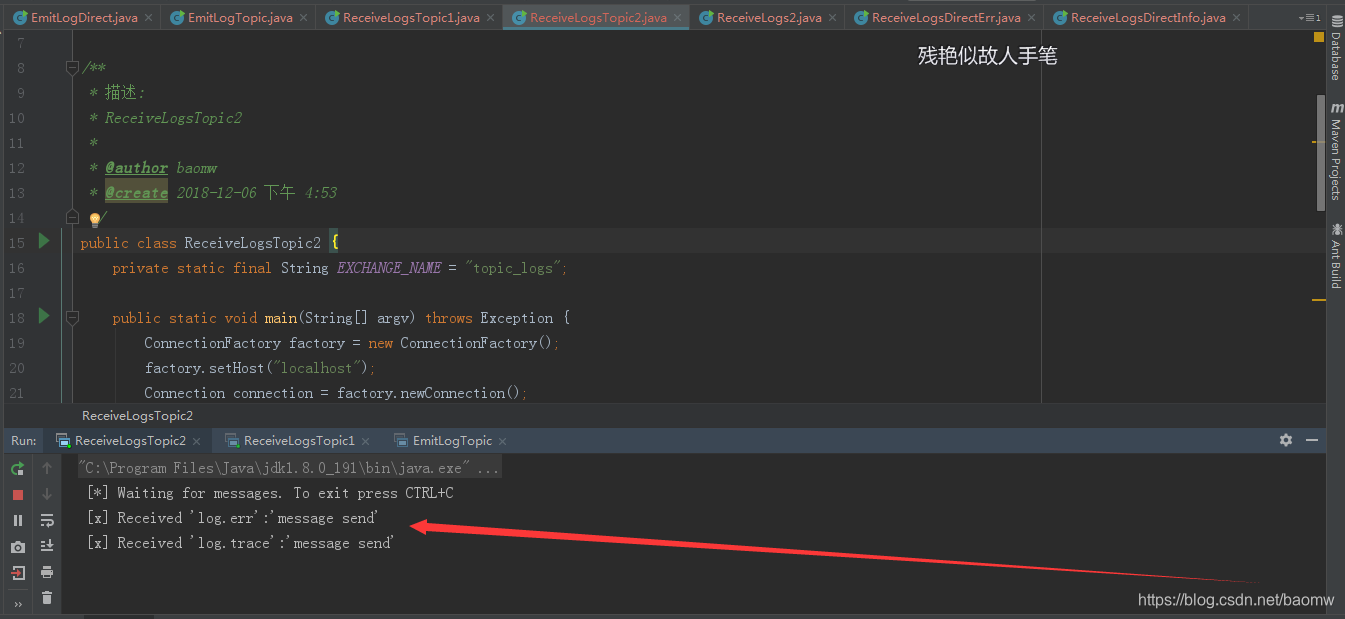

运行结果如下：
可以看到，所有的consumer都获取到了自己匹配的消息类型的消息了。
4，header
其实header用法呢跟我们direct有点像，只是direct是根据字符串做全匹配的，二header是根据键值对来做匹配的，可以是Hashtable，这里呢我就不做过多描述了。
好了关于RabbitMQ的一些基本结束及相关的exchange type介绍就是这些了，当然最后还是需要提一下，一定要学会去看官方文档！
